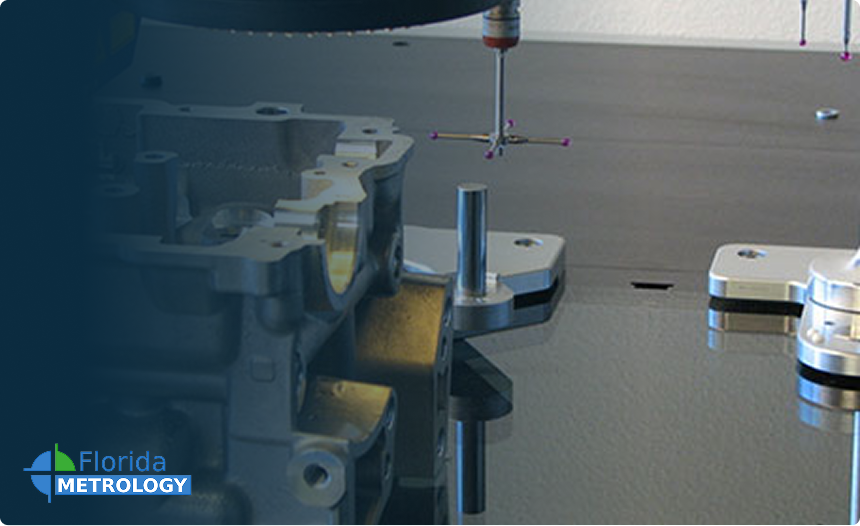

A shipment of parts and a drawing attachment may look like a complete inspection request. In practice, the missing details often sit between those two items: which revision governs, which features need measurement, how samples are identified, and what the receiving quality team expects to do with the results.
Manufacturers requesting dimensional inspection services can address those questions before parts leave the facility. A well-prepared package gives the inspection provider a defined technical problem rather than a box of components accompanied by several possible interpretations.
Start With the Purpose of the Inspection
The request should explain the decision that the measurements will support. Investigating a fit problem, checking a supplier shipment, reviewing a new production setup, and documenting selected dimensions may require different sample selections and reports. The phrase full inspection is too ambiguous to substitute for that explanation.
A clear purpose also establishes boundaries. If only specified characteristics are included, the report should not be interpreted as evidence that every drawing requirement was evaluated. Material properties, surface treatments, and functional performance may fall outside a dimensional assignment unless separate methods and responsibilities have been agreed.
Establish One Controlled Technical Baseline
The package should identify the governing part number, drawing revision, units, and referenced specifications. An old PDF and a newer model should not travel together without an explanation of which controls. Differences between files need resolution by an authorized engineering or quality contact before measurements are planned.
The provider should also know how revisions will be communicated after the order is placed. A changed requirement can affect programming, fixtures, measurement strategy, and report formatting. A short revision log gives both teams a way to distinguish deliberate changes from accidental file replacements during an email exchange.
Align the Drawing and the Digital Model
A digital model can help communicate geometry, but its presence does not automatically establish its contractual authority. The request should state whether the model defines requirements, supplements the drawing, or serves only as a reference. Model-based requirements need a shared understanding of the applicable annotations and data format.
Where a model and drawing disagree, the provider should receive a documented resolution rather than an instruction to choose whichever appears more reasonable. The same applies to missing tolerances or conflicting notes. Inspection produces measurement evidence; it should not quietly become a redesign or interpretation service.
Supply Referenced Documents That Affect the Work
A drawing can depend on separate specifications for datums, inspection conditions, or special characteristics. The manufacturer should identify which referenced documents are necessary and arrange authorized access where appropriate. A reference number alone is not sufficient when the provider cannot obtain the controlling content.
File handling should also respect confidentiality and any applicable access restrictions. The customer should determine whether restrictions apply before transmission and agree on an approved transfer route. Assumptions about a provider’s ability to accept controlled information should never replace a specific review of the order’s requirements.
Define the Characteristics and Sample Plan
A characteristic list connects each requested measurement to a drawing location, requirement, and reporting identifier. Ballooned drawings can help maintain that connection, particularly when several similar holes, profiles, or repeated features appear on one component. The numbering convention should remain stable throughout the assignment.
The sample plan needs equal clarity. The request should specify the quantity submitted, which pieces require which measurements, and whether the work concerns individual parts or an agreed sample from a lot. A result for one component does not establish conformity for an entire shipment without an appropriate sampling basis.
Discuss Measurement Access Before Choosing a Method
Part size, material, surface condition, and feature accessibility influence the measurement approach. A deep bore, flexible wall, reflective edge, or interrupted surface can create different challenges even when nominal dimensions look similar. Early photographs or a short technical review may expose problems that a drawing alone does not show.
Options such as vision and multisensor measurement equipment illustrate why method selection should follow the geometry. The inspection provider should confirm suitability for the requested features and tolerances. The availability of a particular machine does not, by itself, establish that every characteristic can be evaluated adequately.
Explain Datums, Fixturing, and Part Condition
A datum scheme affects how a part is oriented and how geometric requirements are evaluated. The package should identify the applicable datum references and any agreed restraint conditions. For thin, flexible, or easily distorted parts, clamping can influence results, making an undocumented fixture choice especially consequential.
The condition of the submitted part should also be stated. Measurements taken before coating, after heat treatment, or following final assembly may answer different questions. Protective films, burrs, contamination, and loose components can obstruct access or alter readings. Cleaning, deburring, or disassembly should not occur without a clear understanding of authorization and possible effects.
Preserve Identity From Packing Through Reporting
Each part needs a reliable identity that survives shipping, unpacking, measurement, and repacking. Labels on bags or containers should correspond to the packing list and sample plan. When a component cannot be marked directly, the identification method should avoid losing the link between the physical piece and its results.
Packaging should protect relevant surfaces and prevent parts from contacting each other in transit. Heavy or delicate components may need a specific handling discussion before shipment. A record of quantities, serial or lot identifiers, and visible condition helps the receiving team address discrepancies before inspection starts.
Separate Inspection Samples From Troubleshooting Evidence
A package may contain both representative production parts and deliberately selected problem pieces. Those categories should be identified separately. A component chosen because it binds during assembly may help investigate a defect, but it may not represent the broader lot. Mixing the two without explanation can produce a technically sound report that answers the wrong production question.
Relevant background can include the manufacturing operation, an observed fit issue, earlier measurements, or the assembly condition in which a discrepancy appears. Such information should be presented as context, not as an instruction to obtain a predetermined result. When an internal reading is supplied for comparison, the package should identify the method and setup if known. That allows differences to be investigated without assuming that either measurement is automatically the reference value.
Agree on Deliverables and Escalation Rules
The report format should be settled before measurement, particularly when results must be entered into a customer template. Useful fields may include characteristic identifiers, nominal values, limits, measured results, units, and explanatory notes. The package should identify any additional information required to interpret the findings or reproduce the intended setup.
A contact and escalation rule are equally important. The provider needs instructions for missing requirements, apparent nonconformities, inaccessible features, or discrepancies between samples. Holding a question until every part is measured may create avoidable rework. Proceeding without authorization can be worse, especially when the unresolved issue changes the inspection scope.
Distinguish an FAI Assignment From General Inspection
First article inspection can involve more than reporting selected dimensions. Required forms, characteristic accountability, supporting records, and approval responsibilities depend on the applicable contract and customer requirements. The label FAI should therefore trigger a scope review, not an assumption that one universal report package applies to every project.
Background on contract inspection and first article inspection can help distinguish the objectives. For the actual order, the parties should identify the governing requirements and confirm which deliverables the provider can supply. Dimensional results alone do not automatically satisfy every element of a customer’s first article submission.
The final preparation check is straightforward: a controlled requirement set, identified samples, a defined measurement scope, and an agreed reporting path should describe the same assignment. When those elements align, the receiving quality team is better positioned to interpret the results and make the decisions the inspection was commissioned to support.
